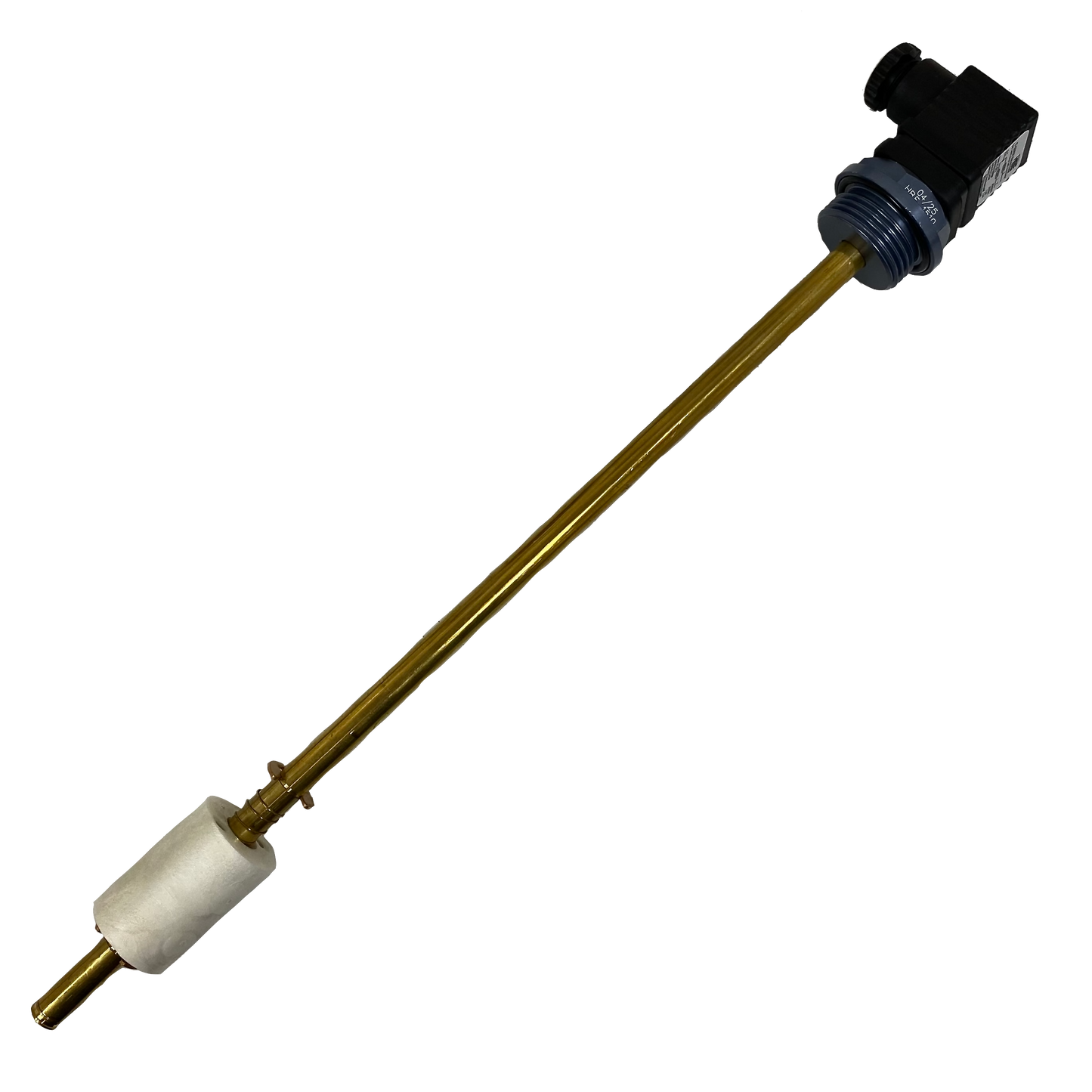

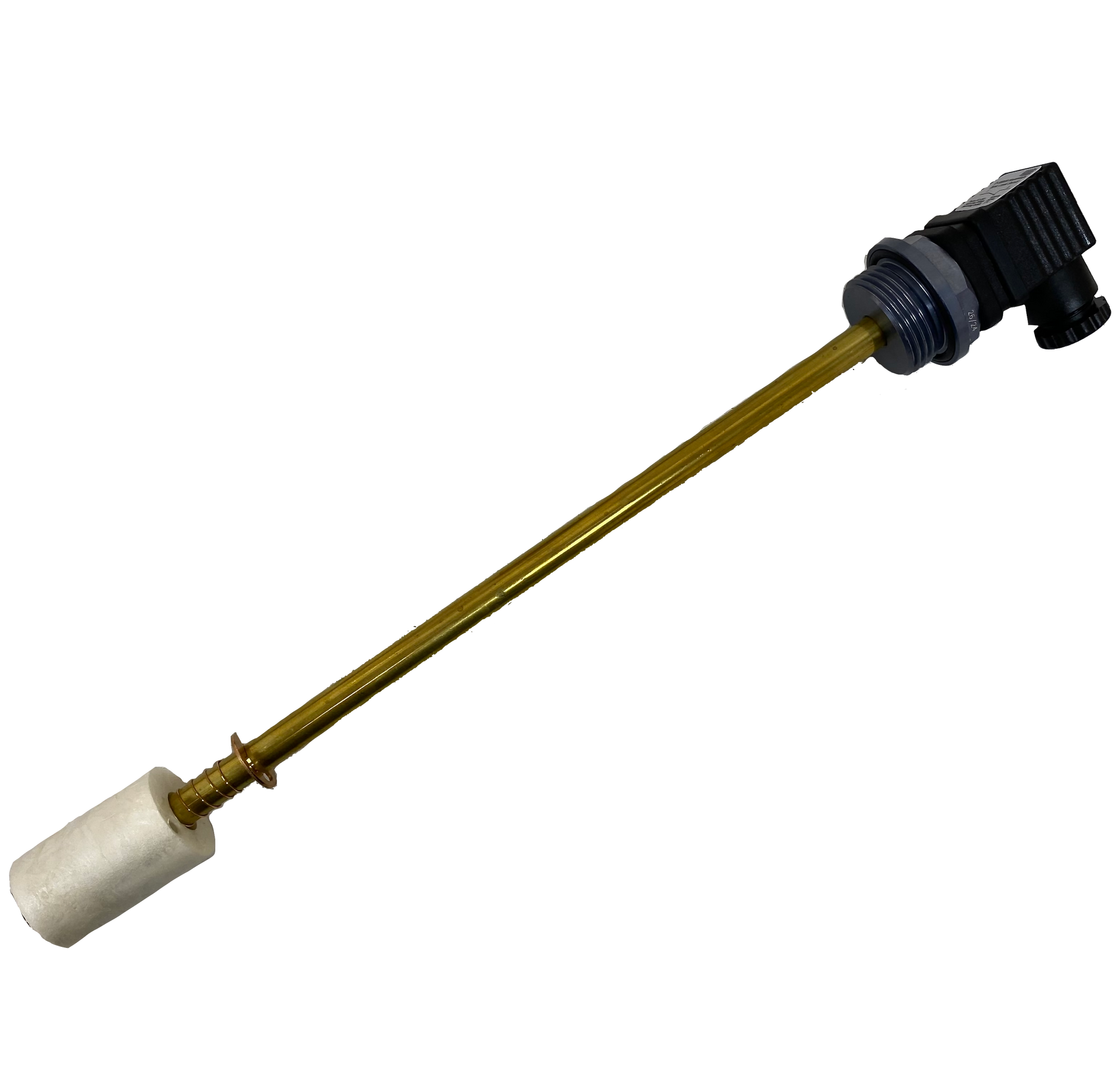

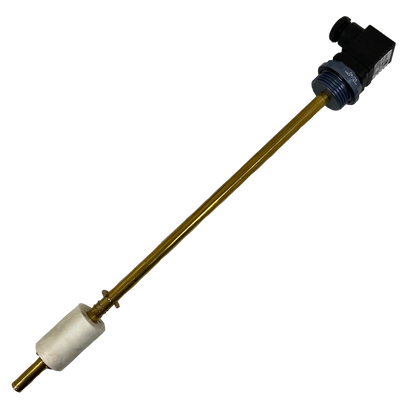

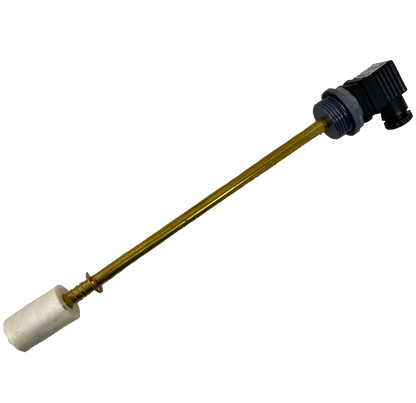

HBE Float Level Switches

HBE Float Level Switches are used for monitoring fluid levels within the tank. Standard sizes are available from 100mm to 700mm with 1 or 2 switch contacts, extra contacts and extended dimensions are available upon request. Standard level switches are suitable for many fluids such as oils, diesel, benzine & water. Options include an additional temperature monitoring and adjustable lengths.

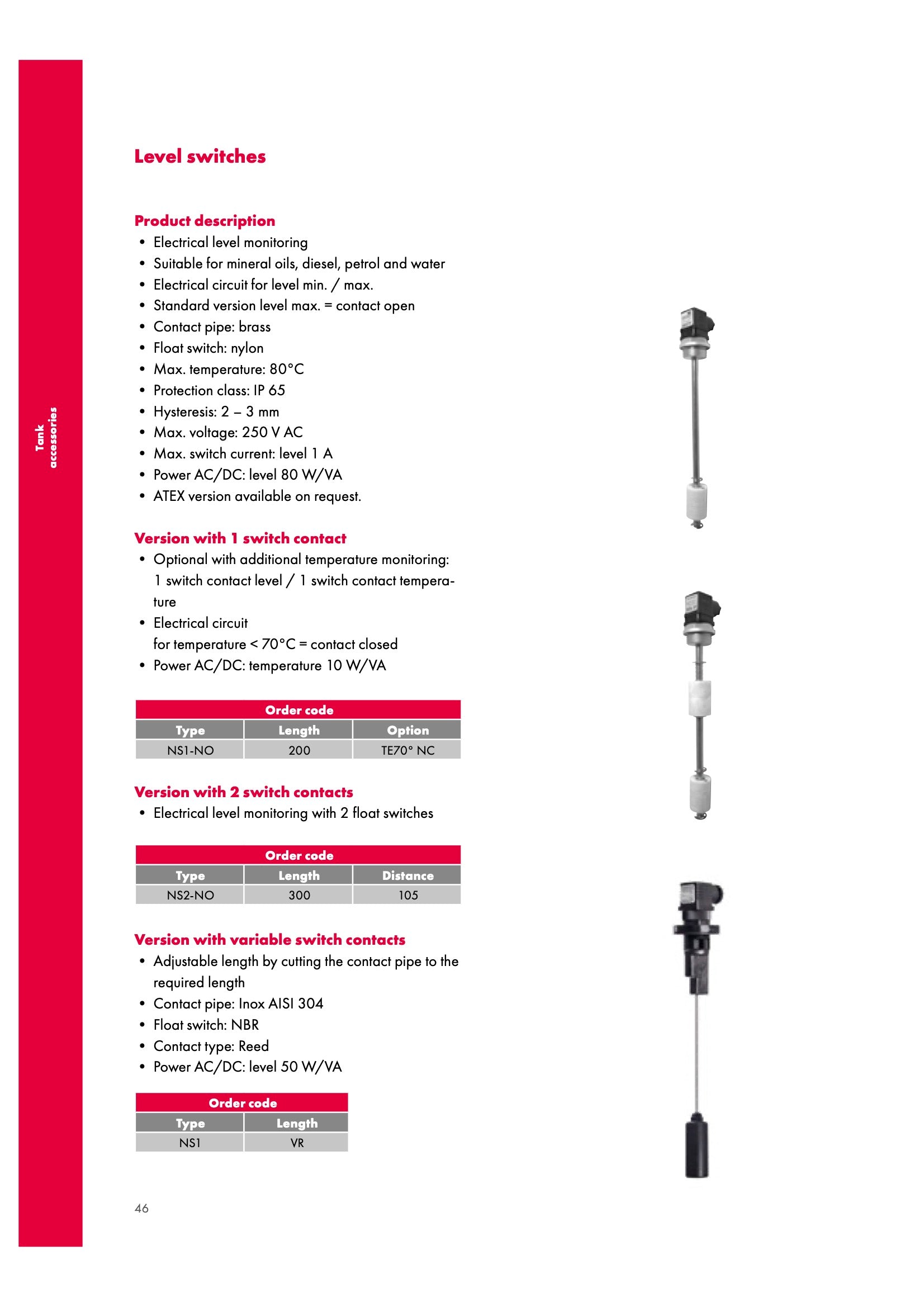

Product description

• Electrical level monitoring
• Suitable for mineral oils, diesel and benzine, water
• Electrical circuit for level min. / max.
• Standard version level max. = contact open
• Simple turning of float max. = contact closed
• Contact pipe: brass
• Float switch: nylon
• Max. temp: 80ºC
• Protection class: IP65
• Hysteresis: 2-3mm
• Max. voltage: 250V AC
• Max. switch current: level 1A
• Power AC/DC: Level 80 W/VA

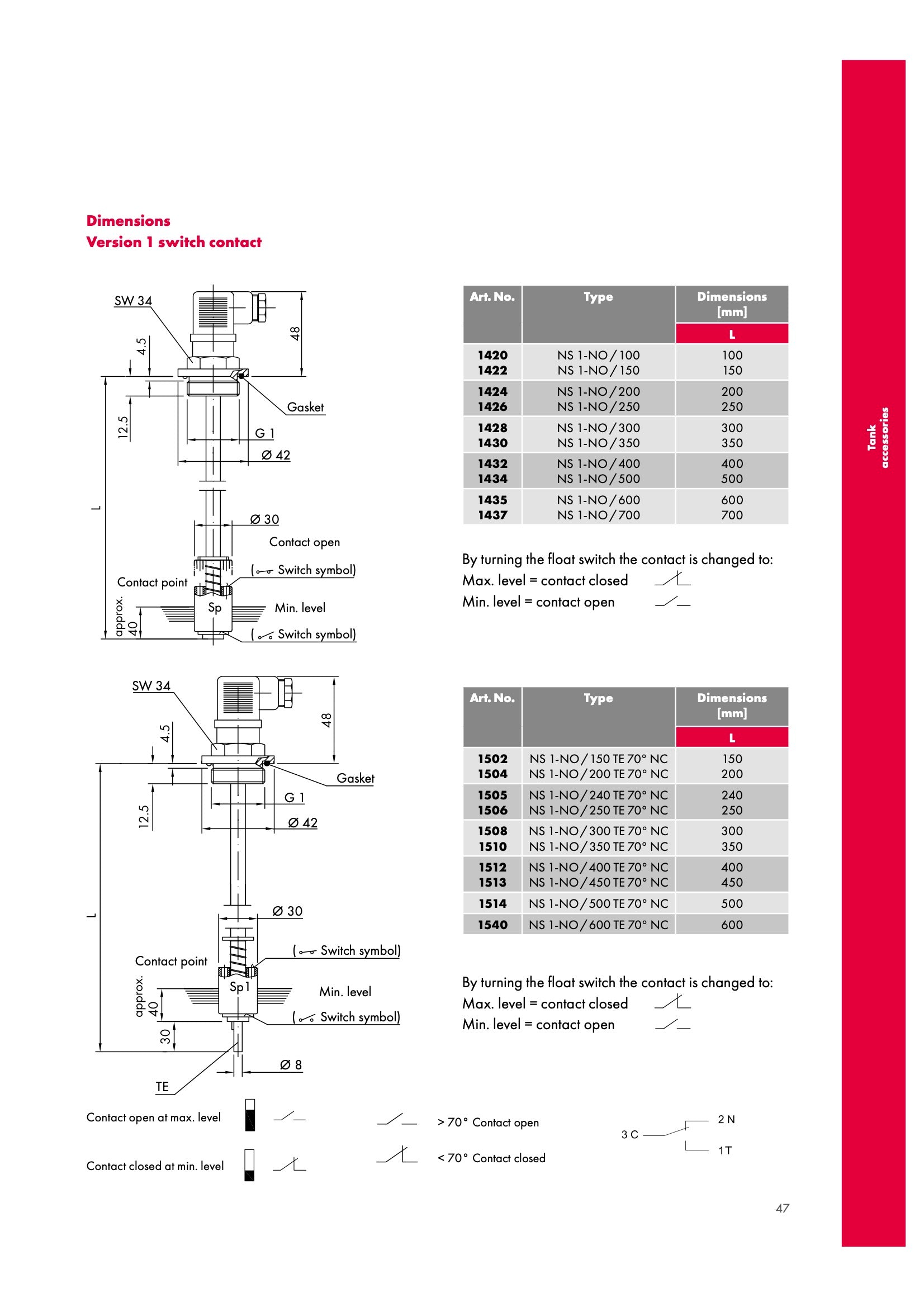

Version With 1 Switch Contact

• Optional with additional temperature monitoring:  1 switch contact level / 1 switch contact temperature
• Electrical circuit for temperature <70ºC = contact closed
• Power AC/DC: temperature 10 W/VA
• Temperature hysteresis: +/-5K
